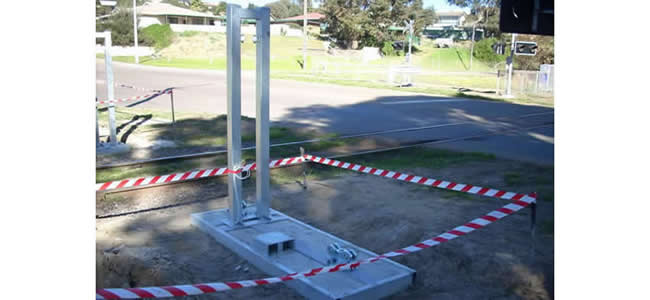

The series of three photographs above show a unique installation where the gate had to cross railway tracks.
Most foundation plates are flat and at ground level but this track had to be raised 150mm so we used 150x50 RHS as form work.
CANTILEVER FOUNDATION PLATES
The key to a successful cantilever install is in the planning, maths and component layout.
Because every installation is unique Automatic Solutions offer a custom made foundation plate so that your layout and installation is not left to chance.
Each cantilever foundation plate is custom drawn and laser cut from 10mm mild steel plate. Trolley positions and support posts will be accurately positioned saving many hours at installation and minimising mistakes.
All bolt positions are supplied with rag bolts and motor mount plates are standard.
Three versions are available in two sizes -
CFFLAT - Supplied in mild steel with rag bolts. Motor mount plates require welding in place.
CFASS - As above but the welding of the motor mount plates already completed.
CFHDG - As with CFASS but galvanised ready to install.
Because every installation is unique Automatic Solutions offer a custom made foundation plate so that your layout and installation is not left to chance.
Each cantilever foundation plate is custom drawn and laser cut from 10mm mild steel plate. Trolley positions and support posts will be accurately positioned saving many hours at installation and minimising mistakes.
All bolt positions are supplied with rag bolts and motor mount plates are standard.
Three versions are available in two sizes -
CFFLAT - Supplied in mild steel with rag bolts. Motor mount plates require welding in place.
CFASS - As above but the welding of the motor mount plates already completed.
CFHDG - As with CFASS but galvanised ready to install.
CFFLAT12 - Custom made cantilever foundation un assembled with rag bolts from 10mm mild steel for gates up to 9 metre opening and 12 metre total. Requires half hour welding.
$1664.00
CFASS12 - Custom made cantilever foundation assembled with rag bolts from 10mm mild steel for gates up to 9 metre opening and 12 metre total. $1847.00
CFHDG12 - Custom made cantilever foundation assembled with rag bolts from 10mm mild steel for gates up to 9 metre opening and 12 metre total. Galvanised finish. $2938.00
CFFLAT15 - Custom made cantilever foundation un assembled with rag bolts from 10mm mild steel for gates up to 12 metre opening and 15 metre total. Requires half hour welding. $2160.00
CFASS15 - Custom made cantilever foundation assembled with rag bolts from 10mm mild steel for gates up to 12 metre opening and 15 metre total. $2366.00
CFHDG15 - Custom made cantilever foundation assembled with rag bolts from 10mm mild steel for gates up to 12 metre opening and 15 metre total. Galvanised finish. $4072.00
